Application environments

Hypertherm Plasma Cutting Across Industrial Cells

Every sector changes the process boundary. Plate format, edge geometry, material traceability, downstream welding, extraction, automation and inspection determine what a usable cut means. The same nameplate can produce different outcomes when those conditions move.

Map the industry factors

Horizontal application file

Five production contexts, five different failure costs

Scroll through the cards to compare the information an application engineer asks for before choosing a process route.

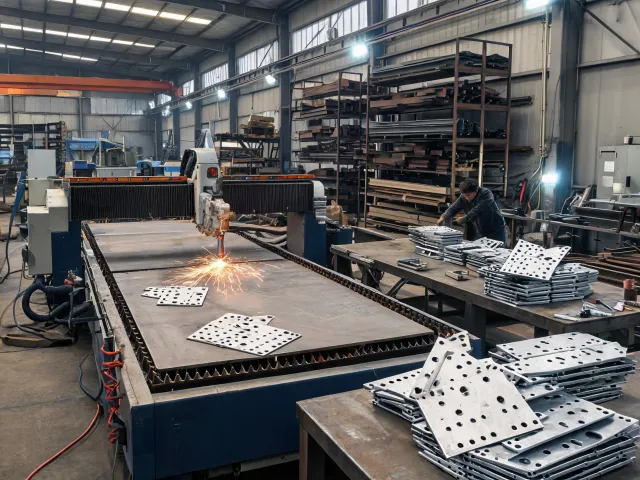

Fabrication

Fit-up starts at the cut edge

Hole quality, bevel direction and dross affect tack time and weld access. Plate lot, program revision and accepted coupon should travel with the part rather than being separated at nesting.

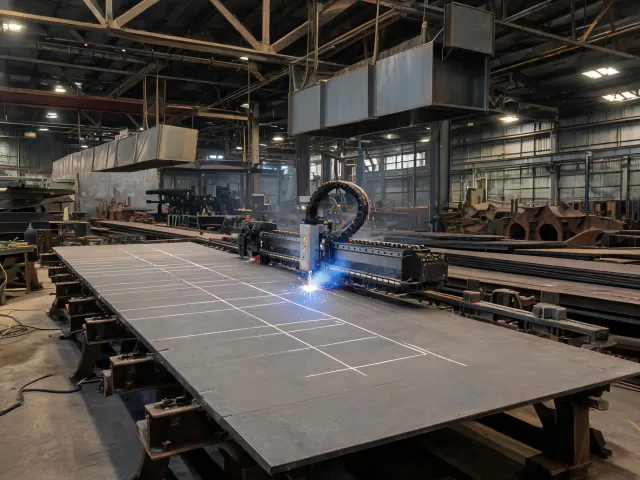

Shipbuilding

Long programs expose drift

Thermal movement, torch alignment, extraction and pierce accumulation can change results across a sheet. Inspection plans need positions across the nest, not one convenient corner coupon.

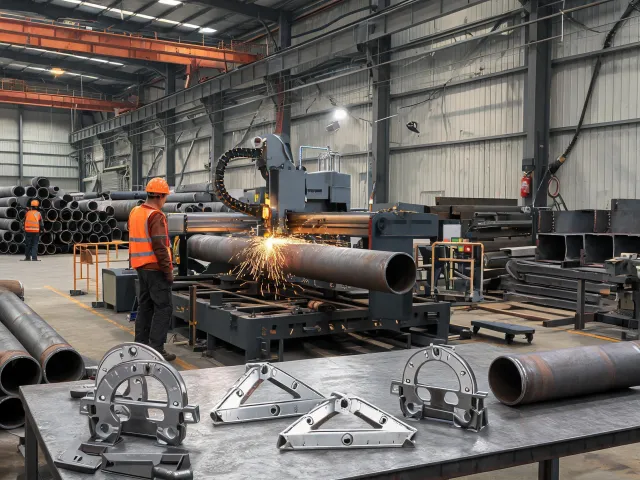

Energy & pipeline

Preparation must match the joining procedure

Edge angle, land, cleanliness and heat effect are considered with the downstream welding procedure. A cut that looks smooth may still require documented preparation before code work.

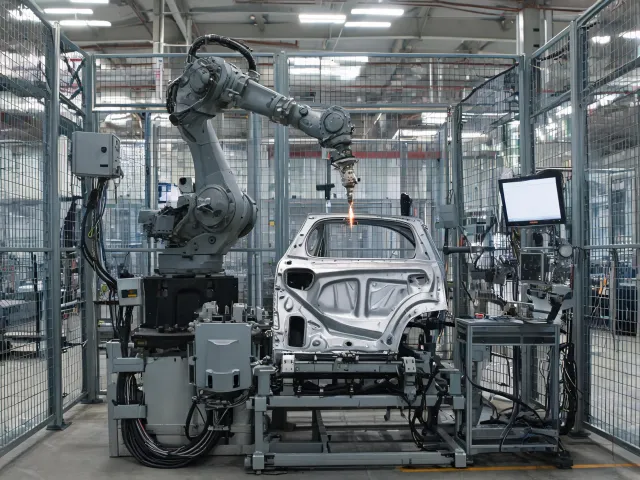

Automotive

Cycle stability outranks one fast sample

Fixture repeatability, command latency and consumable trend matter across thousands of starts. The cell study includes recovery behavior and inspection frequency, not only maximum travel speed.

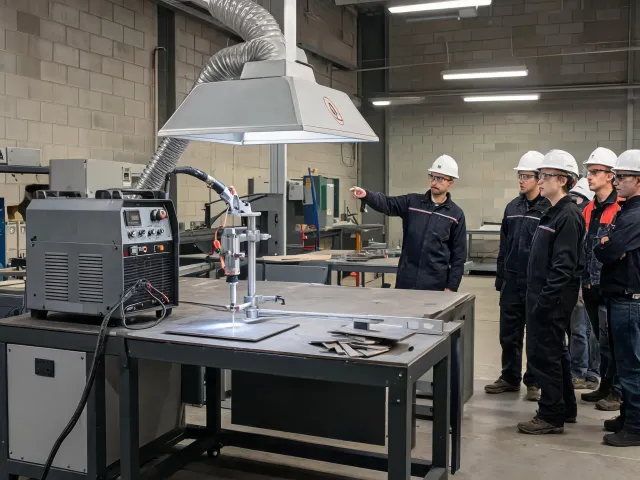

Training lab with plasma cutting equipment

Education & training

Visible variables make safer instruction

Students need clear limits for electrical isolation, fume control, eye protection, compressed gas and hot metal. Process exercises should separate machine setup from technique so errors can be diagnosed.

Method trade-offs

Choose the bottleneck you can control

No named customer or unsupported percentage is used here. These are reproducible scenario records showing background, process and observable result criteria.

A plasma process can improve separation speed relative to some alternatives, but it also adds consumable, fume, arc-light and edge-condition controls. Laser, oxy-fuel and mechanical methods can be preferable under different thickness, tolerance, capital or downstream requirements.

Scenario 01 · Heavy fabrication

From rework complaint to edge-angle record

Background: fitters report inconsistent gaps on nested connection plates. Process: retain coupons from near, center and far nest positions; log torch alignment, motion direction and consumable condition. Result criterion: compare edge angle and dross at the same labeled positions after alignment changes. The method shows whether variation follows the table, torch or material instead of declaring a universal improvement.

Scenario 02 · Automated cell

From nuisance stop to signal timeline

Background: a cell pauses intermittently after transfer. Process: collect controller events, transfer state, motion enable, torch-height response and power-source fault codes on a shared time axis. Result criterion: reproduce the sequence safely and assign each interlock to the responsible device. The record reduces part swapping but does not authorize bypassing protection circuits.

Scenario 03 · Long plate

From single coupon to distributed inspection

Background: the first edge passes while later parts show more dross. Process: sample across elapsed cut time, pierce count and sheet position while logging pressure at flow and consumable condition. Result criterion: identify whether drift correlates with consumables, utilities, heat or motion. Production limits are then written for the tested configuration only.

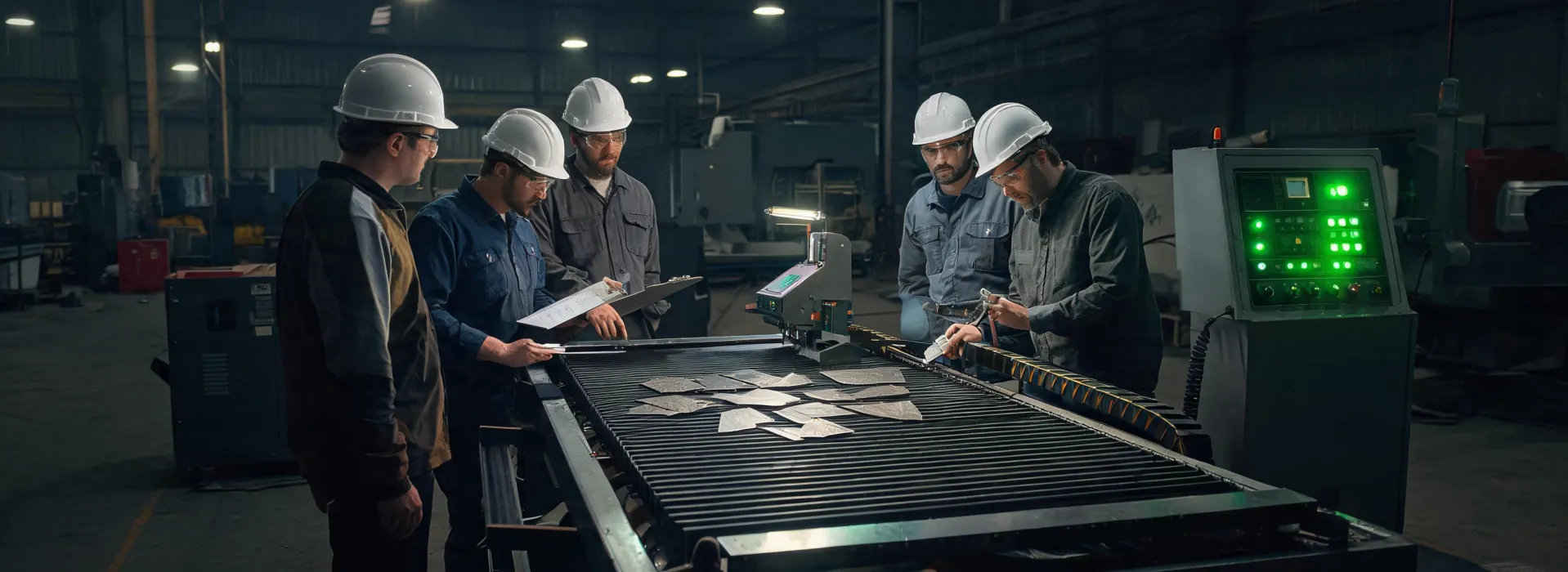

Industrial plasma application review around a CNC table

Define what the next operation needs from the edge.

Material and thickness begin the conversation. Joint preparation, inspection method, cycle pattern, extraction and controller architecture complete it.
